AEH25B48N, AEH-25B Datasheet - Emerson

AEH25B48N, AEH-25B, DC-DC / Industry Standard Isolated Half Brick

Embedded Power for Business-Critical Continuity AEH25 Series 300 Watts Total Power: Input Voltage: # of Outputs: 300 Watts (12 V @ 25 A) 48.

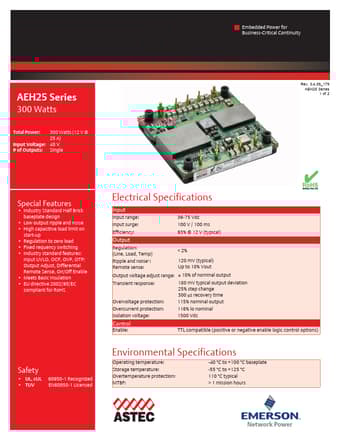

datasheet Preview Page 1 from Datasheet4u.com

AEH-25B-48.pdf

AEH25B48N Datasheet Preview — This datasheet PDF includes multiple part numbers: AEH25B48N, AEH-25B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AEH25B48N, AEH-25B

Manufacturer:

Emerson

File Size:

560.43 KB

Description:

DC-DC / Industry Standard Isolated Half Brick

Note:

This datasheet PDF includes multiple part numbers: AEH25B48N, AEH-25B.
Please refer to the document for exact specifications by model.

Features

* Electrical Specifications Input Input range: Input surge: Efficiency: 6-75 Vdc 3 100 V / 100 ms 93% @ 12 V (typical) < 2% 120 mV (typical) Up to 10% Vout 180 mV typical output deviation 25% step change 300 µs recovery time 115% nominal output 116% lo nominal 1500 Vdc TTL compatible (positive or
