AEH25B48N-CL

DC-DC / Industry Standard Isolated Half Brick

AEH25B48N-CL Features

* Electrical Specifications Input Input ra­nge: Input surge: Efficiency:  6-75 Vdc 3 100 V / 100 ms 93% @ 12 V (typical) < 2% 120 mV (typical) Up to 10% Vout 180 mV typical output deviation 25% step change 300 µs recovery time 115% nominal output 116% lo nominal 1500 Vdc TTL compatible (positive or

AEH25B48N-CL Datasheet (560.43 KB)

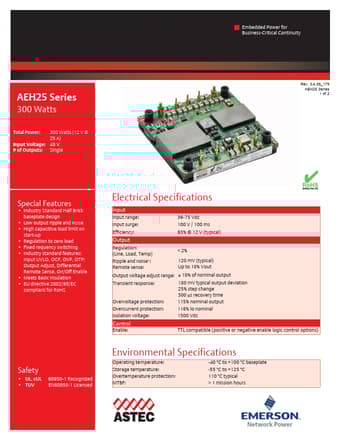

Preview of AEH25B48N-CL PDF

Datasheet Details

Part number:

AEH25B48N-CL

Manufacturer:

Emerson

File Size:

560.43 KB

Description:

Dc-dc / industry standard isolated half brick.
Embedded Power for Business-Critical Continuity AEH25 Series 300 Watts Total Power: Input Voltage: # of Outputs: 300 Watts (12 V @ 25 A) 48.
