EXB100-48S05-R Datasheet - Emerson

EXB100-48S05-R DC-DC / Industry Standard Isolated Half Brick

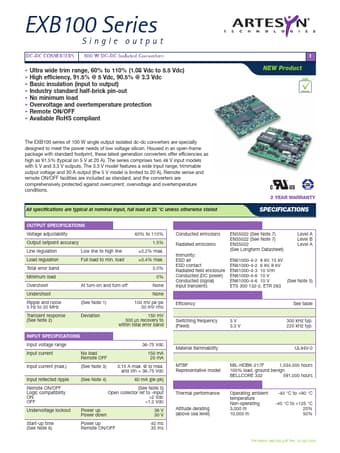

EXB100 Series DC-DC CONVERTERS Single output 100 W DC-DC Isolated Converters NEW Product 1 Ultra wide trim range, 60% to 110% (1.08 Vdc to 5.5 Vdc) High efficiency, 91.5% @ 5 Vdc, 90.5% @ 3.3 Vdc Basic insulation (input to output) Industry standard half-brick pin-out No minimum load Overvoltage and overtemperature protection Remote ON/OFF Available RoHS compliant The EXB100 series of 100 W single output isolated .

EXB100-48S05-R Features

* a wide input range, trimmable output voltage and 30 A output (the 5 V model is limited to 20 A). Remote sense and remote ON/OFF facilities are included as standard, and the converters are comprehensively protected against overcurrent, overvoltage and overtemperature conditions. 2 YEAR WARRANTY All s

EXB100-48S05-R Datasheet (408.52 KB)
