EXB-18V, EXB14V Datasheet - Panasonic

EXB-18V, EXB14V, Chip Resistor Array

Chip Resistor Array Type: Chip Resistor Array EXB1 : 0201 Array EXB2 : 0402 Array EXB3 : 0603 Array EXBN : 0402 Array EXBV : 0603 Array EXBS : 0805 .

EXB14V_Panasonic.pdf

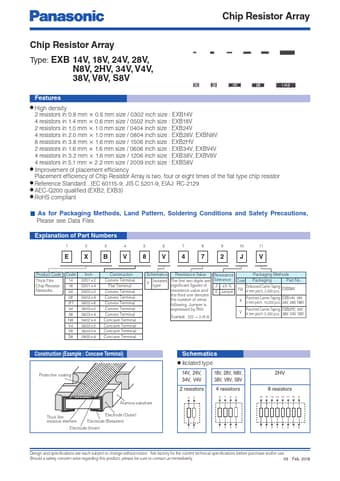

EXB-18V Datasheet Preview — This datasheet PDF includes multiple part numbers: EXB-18V, EXB14V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EXB-18V, EXB14V

Manufacturer:

Panasonic

File Size:

123.56 KB

Description:

Chip Resistor Array

Note:

This datasheet PDF includes multiple part numbers: EXB-18V, EXB14V.
Please refer to the document for exact specifications by model.

Features

* High density 2 resistors in 0.8 mm ҂ 0.6 mm size 4 resistors in 1.4 mm ҂ 0.6 mm size 2 resistors in 1.0 mm ҂ 1.0 mm size 4 resistors in 2.0 mm ҂ 1.0 mm size 8 resistors in 3.8 mm ҂ 1.6 mm size 2 resistors in 1.6 mm ҂ 1.6 mm size 4 resistors in 3.2 mm ҂ 1.6 mm size 4 resistors in 5.1 mm ҂ 2.2 m
