EXB100-48S3V3-RNJ DC-DC / Industry Standard Isolated Half Brick

EXB100 Series DC-DC CONVERTERS Single output 100 W DC-DC Isolated Converters NEW Product 1 Ultra wide trim range, 60% to 110% (1.08 Vdc to 5.5 Vdc) High efficiency, 91.5% @ 5 Vdc, 90.5% @ 3.3 Vdc Basic insulation (input to output) Industry standard half-brick pin-out No minimum load Overvoltage and overtemperature protection Remote ON/OFF Available RoHS compliant The EXB100 series of 100 W single output isolated .

EXB100-48S3V3-RNJ Features

* a wide input range, trimmable output voltage and 30 A output (the 5 V model is limited to 20 A). Remote sense and remote ON/OFF facilities are included as standard, and the converters are comprehensively protected against overcurrent, overvoltage and overtemperature conditions. 2 YEAR WARRANTY All s

EXB100-48S3V3-RNJ_exb100s_1191533394_Emerson.pdf

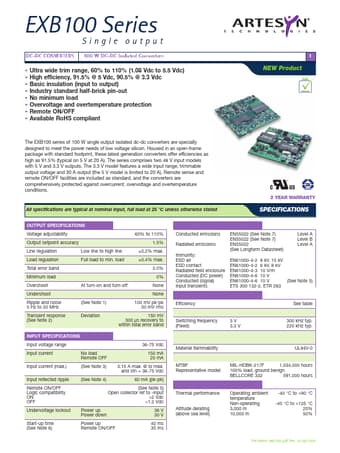

EXB100-48S3V3-RNJ Datasheet Preview — This datasheet PDF includes multiple part numbers: EXB100-48S3V3-RNJ, EXB100-48S3V3-RNJ_exb100s_1191533394. Please refer to the document for exact specifications by model.

EXB100-48S3V3-RNJ Datasheet Preview Page 2

Datasheet Details

Part number:

EXB100-48S3V3-RNJ, EXB100-48S3V3-RNJ_exb100s_1191533394

Manufacturer:

Emerson

File Size:

408.52 KB

Description:

Dc-dc / industry standard isolated half brick.

Note:

This datasheet PDF includes multiple part numbers: EXB100-48S3V3-RNJ, EXB100-48S3V3-RNJ_exb100s_1191533394.
Please refer to the document for exact specifications by model.
