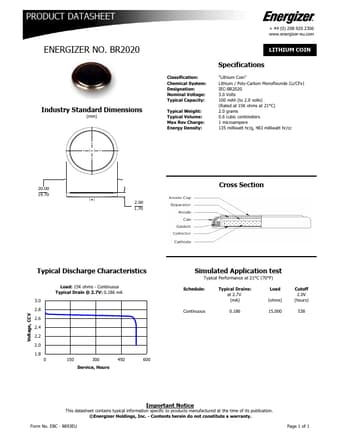

PRODUCT DATASHEET ENERGIZER NO. BR2020
Industry Standard Dimensions
(mm)
1-800-383-+734243(/0U) S2A08 920 2306 1-800-383-w73w2w3.e/ nCeArgNizAeDr-Aeu.com
Classification: Chemical System: Designation: Nominal Voltage: Typical Capacity:
Typical Weight: Typical Volume: Max Rev Charge: Energy Density:
LITHIUM COIN
Specifications
"Lithium Coin" Lithium / Poly-Carbon Monoflouride (Li/CFx) IEC-BR2020 3.0 Volts 100 mAh (to 2.0 volts) (Rated at 15K ohms at 21°C) 2.0 grams 0.6 cubic centimeters 1 microampere 135 milliwatt hr/g, 483 milliwatt hr/cc
20.00 19.70
Cross Section
2.00 1.70
Voltage, CCV
Typical Discharge Characteristics
Load: 15K ohms - Continuous Typical Drain @ 2.7V: 0.186 mA
3.0
2.8
2.6
2.4
2.2
2.0
1.
