BR202 - (BR202 / BR203) POL Converter Module

Datasheet Summary

Description

The BR202 and BR203 are thin type POL converter modules with an industry standard exterior shape and footprint, responsive to very high speed loads and compatible with ceramic capacitors.

They can be used as design-free POL converters for a 12 V system intermediate bus.

Features

  • Industry standard footprint.
  • Improved soldering: gold-plated pads and side notches.
  • Synchronized rectifying type stepdown chopper.
  • High power.
  • High efficiency: ▫ BR202, 88.5% at VIN = 12 V, VO = 1.2 V, IO = 11 A ▫ BR203, 93.4% at VIN = 12 V, VO = 3.3 V, IO = 12 A.
  • Operating temperature range:.
  • 40°C to 85°C.
  • Input voltage range: 10.8 to 13.2 VDC.
  • Output voltage: BR202, 0.75 to 1.65 V; BR203, 1.6 to 3.63 V.
  • O.

📥 Download Datasheet

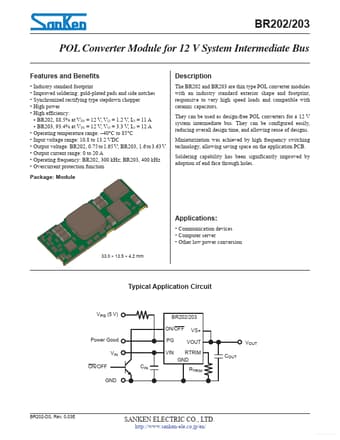

Datasheet preview – BR202

Datasheet Details

Part number BR202
Manufacturer Sanken
File Size 627.26 KB
Description (BR202 / BR203) POL Converter Module
Datasheet download datasheet BR202 Datasheet
Additional preview pages of the BR202 datasheet.

📁 Similar Datasheet

  • BR2020 - LITHIUM COIN (Energizer)
  • BR2016 - Lithium Coin Batteries (Panasonic)
  • BR203 - TIRISTORI (M&G Electronic)
  • BR2032 - LITHIUM POLY-CARBONMONOFLUORIDE (Panasonic)
  • BR20N50 - N-CHANNEL MOSFET (BLUE ROCKET ELECTRONICS)
  • BR210 - Breakover Diodes (NXP)
  • BR210 - MINI SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Pan Jit International)
  • BR211 - Breakover diodes (NXP)
  • BR211-140 - Breakover diodes (NXP)
  • BR211-160 - Breakover diodes (NXP)
Other Datasheets by Sanken
  • BR200 - (BR200 / BR201) POL Converter Module
  • BR201 - (BR200 / BR201) POL Converter Module
  • BR203 - (BR202 / BR203) POL Converter Module
  • BR204 - POL Converter Module
  • BR205 - POL Converter Module
  • BR206 - POL Converter Module

Full PDF Text Transcription

Click to expand full text
BR202/203 POL Converter Module for 12 V System Intermediate Bus Features and Benefits • Industry standard footprint • Improved soldering: gold-plated pads and side notches • Synchronized rectifying type stepdown chopper • High power • High efficiency: ▫ BR202, 88.5% at VIN = 12 V, VO = 1.2 V, IO = 11 A ▫ BR203, 93.4% at VIN = 12 V, VO = 3.3 V, IO = 12 A • Operating temperature range: –40°C to 85°C • Input voltage range: 10.8 to 13.2 VDC • Output voltage: BR202, 0.75 to 1.65 V; BR203, 1.6 to 3.
