BR201 - (BR200 / BR201) POL Converter Module

This page provides the datasheet information for the BR201, a member of the BR200 (BR200 / BR201) POL Converter Module family.

Datasheet Summary

Description

The BR200 and BR201 are thin type POL converter modules with an industry standard exterior shape and footprint, responsive to very high speed loads and compatible with ceramic capacitors.

They can be used as design-free POL converters for a 12 V system intermediate bus.

Features

  • Industry standard footprint.
  • Improved soldering: gold-plated pads and side notches.
  • Synchronized rectifying type stepdown chopper.
  • High power.
  • High efficiency: ▫ BR200, 89.9% at VIN = 12 V, VO = 1.5 V, IO = 7 A ▫ BR201, 93.8% at VIN = 12 V, VO = 3.3 V, IO = 7 A.
  • Operating temperature range:.
  • 40°C to 85°C.
  • Input voltage range: 7 to 14 VDC.
  • Output voltage: BR200, 0.75 to 1.65 V; BR201, 1.6 to 3.63 V.
  • Output c.

📥 Download Datasheet

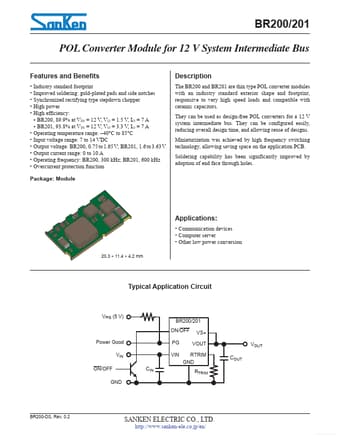

Datasheet preview – BR201
