EN25B16

16 Mbit Serial Flash Memory

EN25B16 Features

* Single power supply operation - Full voltage range: 2.7-3.6 volt

* 16 M-bit Serial Flash - 16 M-bit/2048 K-byte/8192 pages - 256 bytes per programmable page

* High performance - 100MHz clock rate

* Low power consumption - 5 mA typical active current - 1 μA typical p

EN25B16 General Description

The EN25B16 is a 16M-bit (2048K-byte) Serial Flash memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The EN25B16 has thirty six sectors including thirty one sector.

EN25B16 Datasheet (520.41 KB)

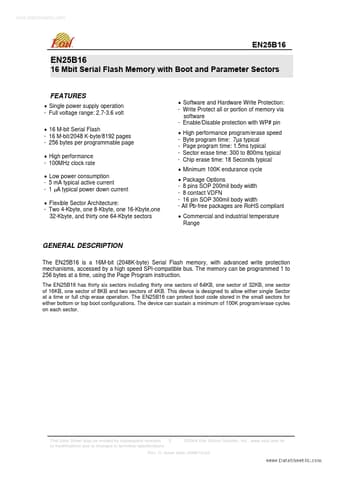

Preview of EN25B16 PDF

Datasheet Details

Part number:

EN25B16

Manufacturer:

Eon

File Size:

520.41 KB

Description:

16 mbit serial flash memory.
