EN25B05

512 Kbit Serial Flash Memory

EN25B05 Features

* Single power supply operation - Full voltage range: 2.7-3.6 volt

* 512 K-bit Serial Flash - 512 K-bit/64 K-byte/256 pages - 256 bytes per programmable page

* High performance - 75MHz clock rate

* Low power consumption - 5 mA typical active current - 1 μA typical pow

EN25B05 General Description

The EN25B05 is a 512 K-bit (64K-byte) Serial Flash memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The EN25B05 has five sectors including one sector of 32KB, one.

EN25B05 Datasheet (441.16 KB)

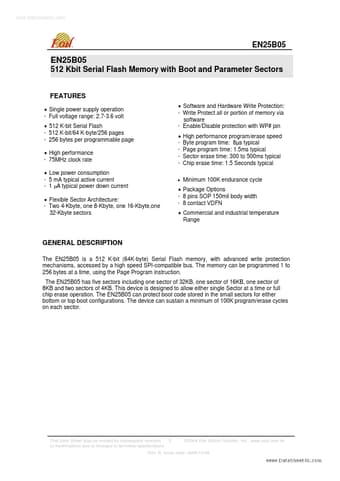

Preview of EN25B05 PDF

Datasheet Details

Part number:

EN25B05

Manufacturer:

Eon Silicon Solution

File Size:

441.16 KB

Description:

512 kbit serial flash memory.
