EN25B40 Datasheet - Eon

EN25B40 - 4 Mbit Serial Flash Memory

The EN25B40 is a 4M-bit (512K-byte) Serial Flash memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus.

The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.

The EN25B40 has twelve sectors including seven sectors of 64KB,

EN25B40 Features

* Single power supply operation - Full voltage range: 2.7-3.6 volt

* 4 M-bit Serial Flash - 4 M-bit/512 K-byte/2048 pages - 256 bytes per programmable page

* High performance - 75MHz clock rate

* Low power consumption - 5 mA typical active current - 1 μA typical power

EN25B40_Eon.pdf

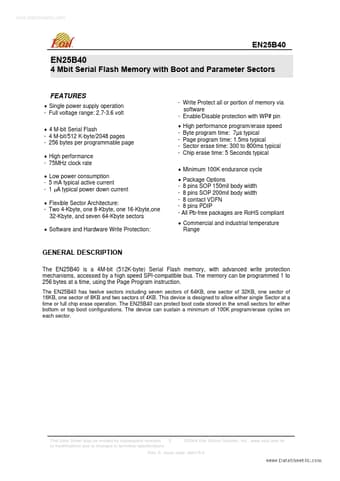

Preview of EN25B40 PDF
EN25B40 Datasheet Preview Page 2 EN25B40 Datasheet Preview Page 3

Datasheet Details

Part number:

EN25B40

Manufacturer:

Eon

File Size:

522.73 KB

Description:

4 mbit serial flash memory.
