EN25P20

2 Mbit Uniform Sector Flash Memory

EN25P20 Features

* Single power supply operation - Full voltage range: 2.7-3.6 volt

* 2 Mbit Serial Flash - 2 M-bit/256 K-byte/1024 pages - 256 bytes per programmable page

* High performance - 100MHz clock rate

* Low power consumption - 5 mA typical active current - 1 μA typical power

EN25P20 General Description

The EN25P20 is a 2M-bit (256K-byte) Serial Flash memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The EN25P20 is designed to allow either single Sector at a time .

EN25P20 Datasheet (445.52 KB)

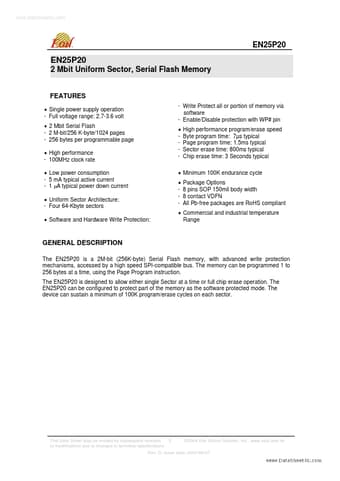

Preview of EN25P20 PDF

Datasheet Details

Part number:

EN25P20

Manufacturer:

Eon

File Size:

445.52 KB

Description:

2 mbit uniform sector flash memory.
