EBRP15L45C - Excellent Schottky Barrier Rectifiers

EBRP15L45C Description

EBRP15L45C Excellent Schottky Barrier Rectifiers DO-214AB(SMC) Primary Characteristics IF 15 A VRRM 45 V IFSM 200 A VF 0.5 V TJ max 1.

EBRP15L45C Features

* ‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Case: DO-214AB (SMC) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free P

📥 Download Datasheet

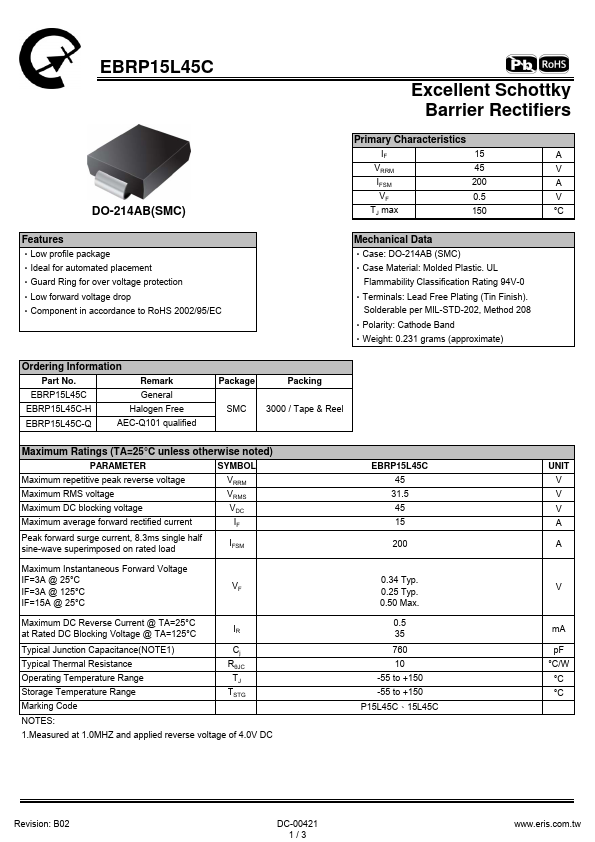

Preview of EBRP15L45C PDF

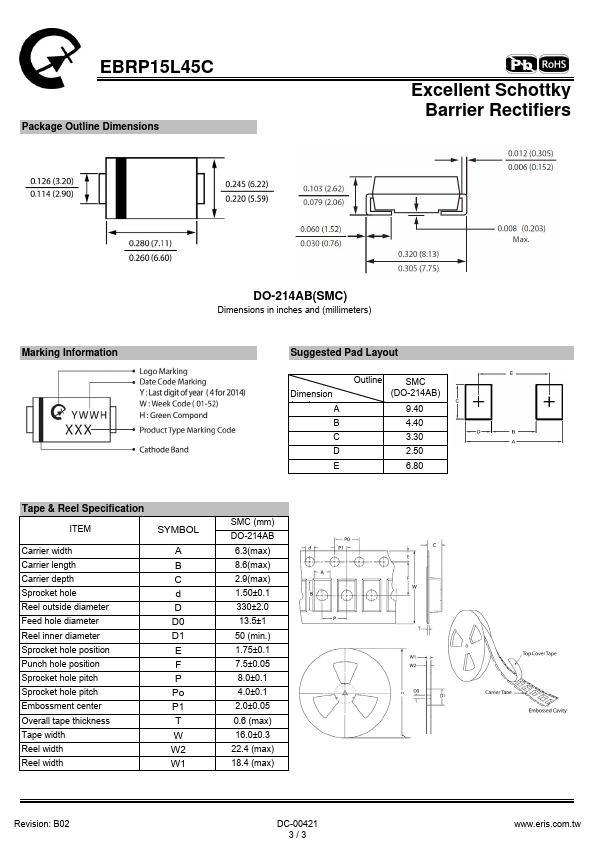

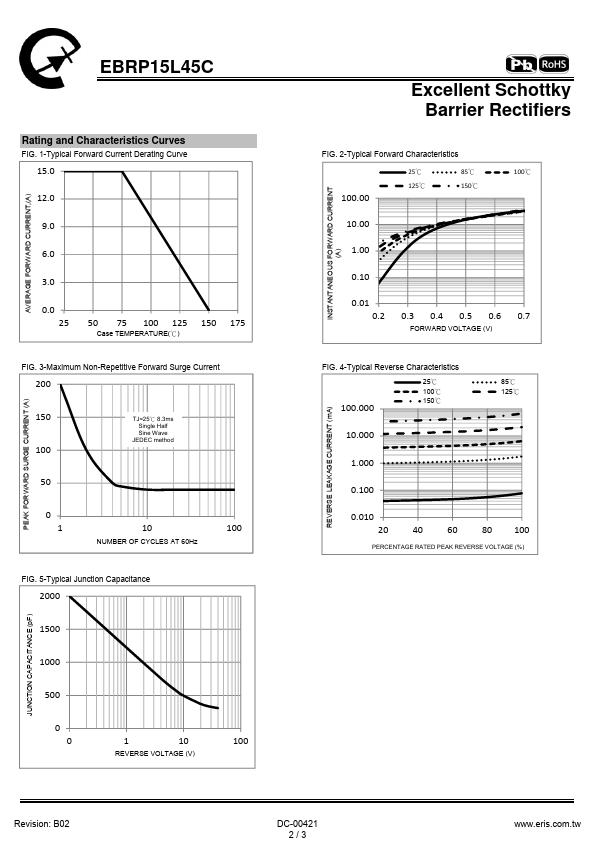

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EBRP15L45C
Manufacturer
Eris
File Size
331.55 KB
Datasheet
EBRP15L45C-Eris.pdf
Description
Excellent Schottky Barrier Rectifiers
