EBRT15E120D - Excellent Schottky Barrier Rectifiers

EBRT15E120D Description

EBRT15E120D Excellent Schottky Barrier Rectifiers Device P/N Part Number Remark EBRT15E120D General EBRT15E120D-H Halogen Free DO-201AD Feat.

EBRT15E120D Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Ordering Information Part No. Package EBRT15E120D DO-201AD Packing 500 / Box Primary Characteristics IF 15 A VRRM 120 V IFSM 200 A VF 0.78 V TJ max 150 °C Me

📥 Download Datasheet

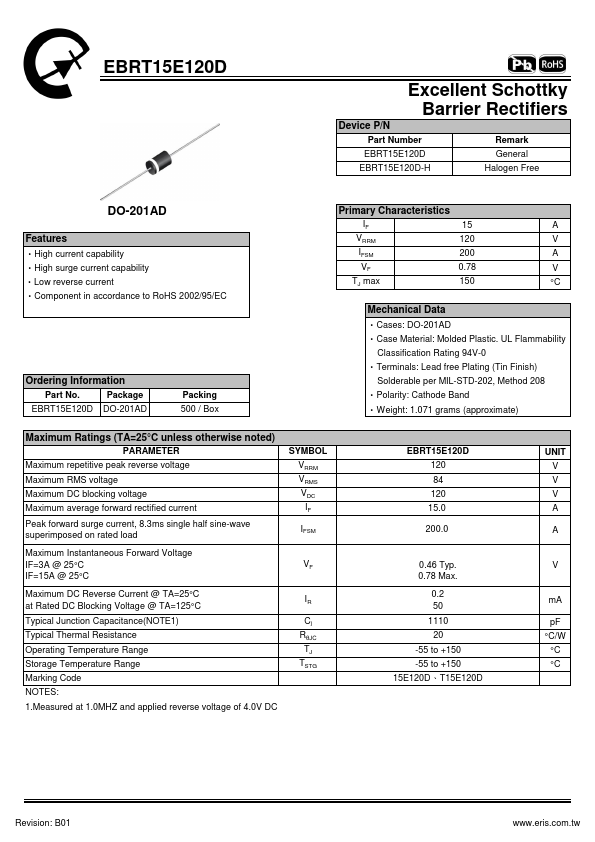

Preview of EBRT15E120D PDF

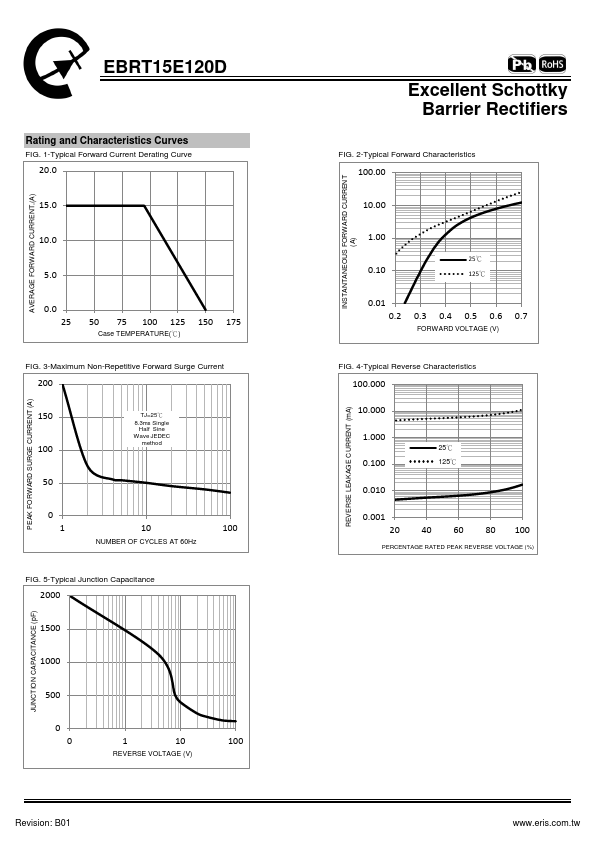

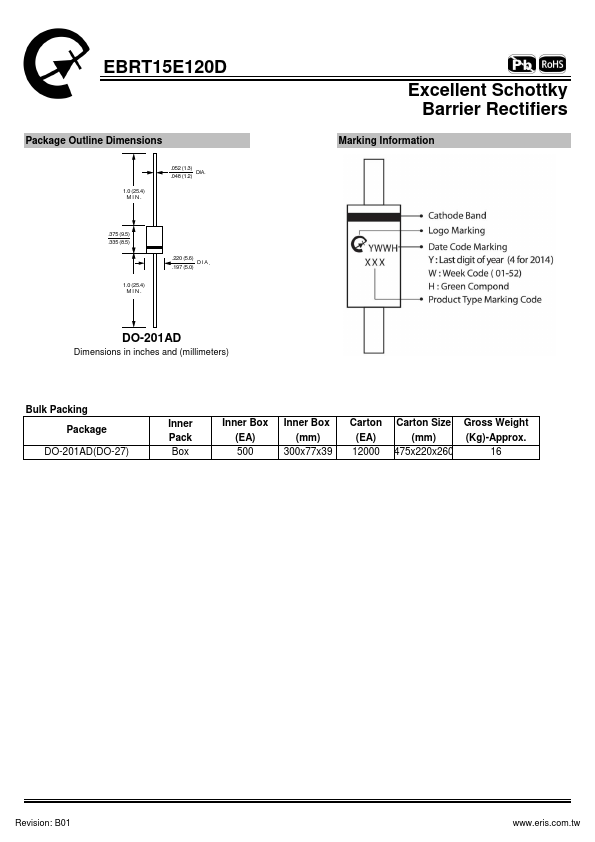

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EBRT15E120D
Manufacturer
Eris
File Size
196.29 KB
Datasheet
EBRT15E120D-Eris.pdf
Description
Excellent Schottky Barrier Rectifiers
