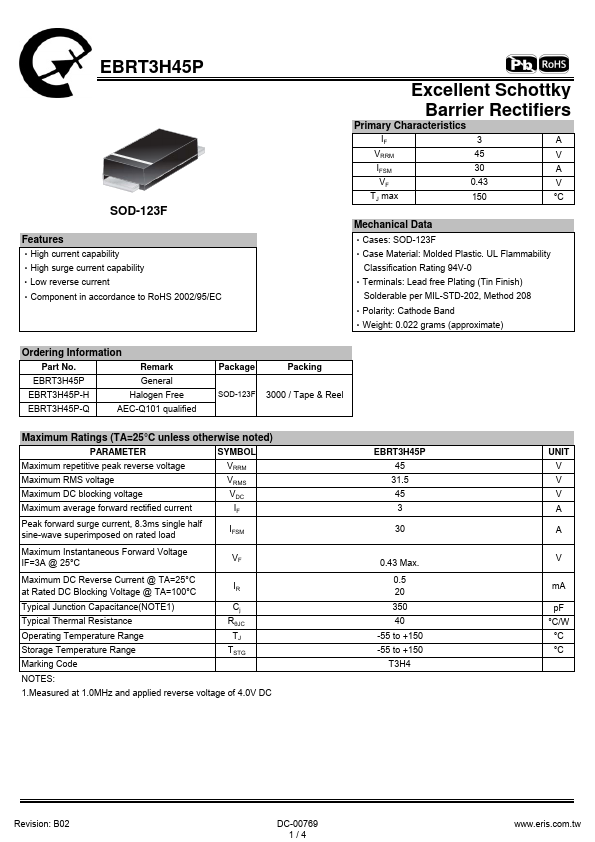

EBRT3H45P Datasheet Preview — Preview of EBRT3H45P PDF

datasheet Preview Page 2

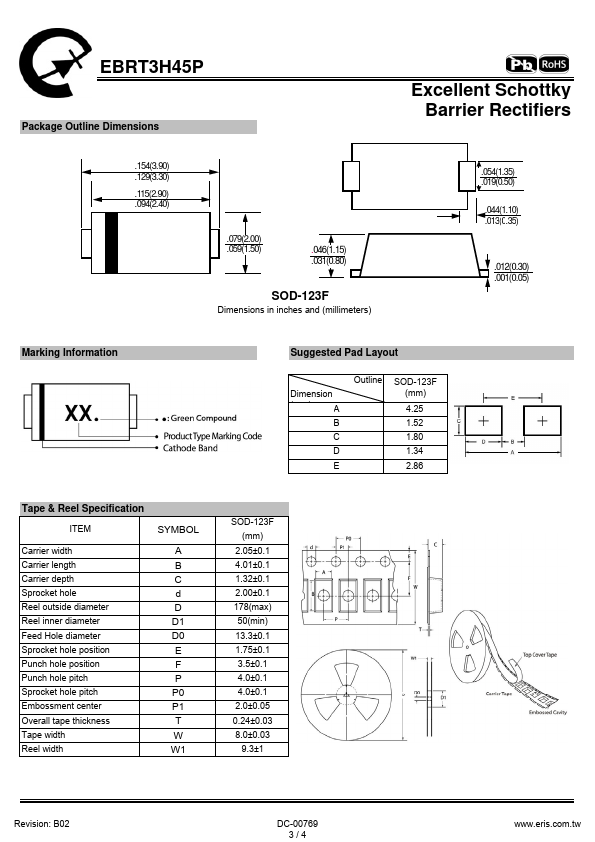

datasheet Preview Page 3

Datasheet Details

Part number	EBRT3H45P
Manufacturer	Eris
File Size	269.12 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT3H45P-Eris.pdf

EBRT3H45P Product details

Features

‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Excellent Schottky Barrier Rectifiers Primary Characteristics IF 3 A VRRM 45 V IFSM 30 A VF 0.43 V TJ max 150 °C Mechanical Data ‧Cases: SOD-123F ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.022 grams (approximat.
