HER807S High Efficiency Rectifiers

.057(1.45) .046(1.16) .549(13.96) .499(12.7) HER801S thru HER807S .055(1.4) .043(1.1) .403(10.26) .385(9.8) .153(3.9) .145(3.7) .189(4.82) .173(4.4) .251(6.4) .228(5.8) .129(3.3) .1(2.54) MAX0.047(1.2) .624(15.87) .578(14.7) .177(4.50) .140(3.56) .026(0.68) .014(0.36) High Efficiency Rectifiers Glass Passivation Junction Ordering Information Part Number HER80xS Remark General HER80xS-H Halogen Free HER80xS-Q Automotive .039(1.0) .028(0.72) .114(2.92) .080(2.05) TO-220AC Dime.

HER807S Features

* ‧Low forward voltage drop ‧High current capability ‧High reliability ‧High surge current capability ‧High speed switching ‧AEC-Q101 qualified PRIMARY CHARACTERISTICS IF 8A VRRM 50~1000V IFSM 125A VF 1.0V,1.30V, 1.75V TJ max 150°C Mechanical Date ‧Case:TO-220AC ‧Case Material: Molded Plastic

HER801S-Eris.pdf

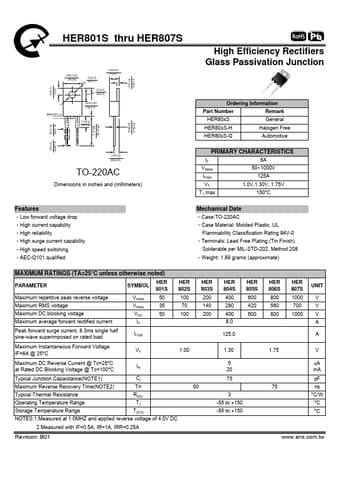

HER807S Datasheet Preview — This datasheet PDF includes multiple part numbers: HER807S, HER801S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HER807S, HER801S

Manufacturer:

Eris

File Size:

151.68 KB

Description:

High efficiency rectifiers.

Note:

This datasheet PDF includes multiple part numbers: HER807S, HER801S.
Please refer to the document for exact specifications by model.
