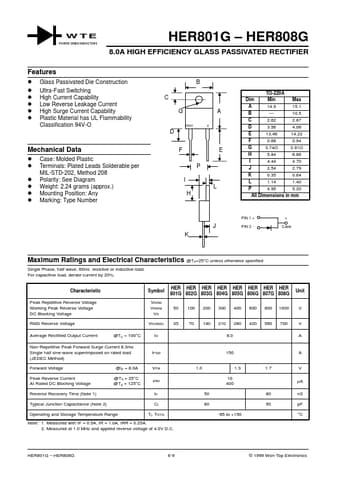

HER807G, HER801G-WON - 8.0A HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER

WON-TOP

Datasheet Details

Part number	HER807G, HER801G-WON
Manufacturer	WON-TOP
File Size	34.26 KB
Description	8.0A HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER
Datasheet	HER801G-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: HER807G, HER801G-WON. Please refer to the document for exact specifications by model.

! Glass Passivated Die Construction ! Ultra-Fast Switching ! High Current Capability ! Low Reverse Leakage Current ! High Surge Current Capability ! Plastic Material has UL Flammability Classification 94V-O Mechanical Data ! Case: Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: See Diagram ! Weight: 2.24 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number B C G A PIN1 D 2 FE P I H L TO-220A Dim Min Max A 14.9 15.1 B.
