HER807, HER801 - GLASS PASSIVATED HIGH EFFICIENCY RECTIFIERS

SEMTECH

Datasheet Details

Part number	HER807, HER801
Manufacturer	SEMTECH
File Size	265.48 KB
Description	GLASS PASSIVATED HIGH EFFICIENCY RECTIFIERS

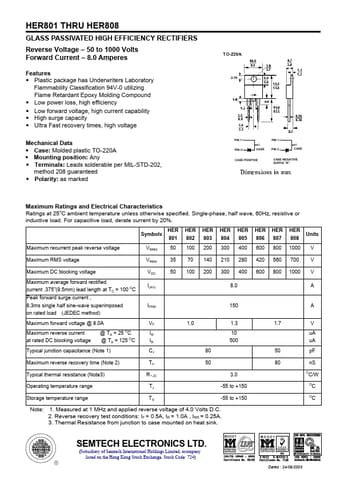

Datasheet	HER801-SEMTECH.pdf
Note	This datasheet PDF includes multiple part numbers: HER807, HER801. Please refer to the document for exact specifications by model.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0 utilizing Flame Retardant Epoxy Molding Compound.
Low power loss, high efficiency.
Low forward voltage, high current capability.
High surge capacity.
Ultra Fast recovery times, high voltage Mechanical Data.
Case: Molded plastic TO-220A.
Mounting position: Any.
Terminals: Leads solderable per MIL-STD-202, method 208 guaranteed.
Polarity: a.
