SM3150AF, SM320AF - Schottky Barrier Rectifiers

Eris

Datasheet Details

Part number: SM3150AF, SM320AF
Manufacturer: Eris
File Size: 193.85 KB
Datasheet: SM320AF-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SM3150AF, SM320AF.
Please refer to the document for exact specifications by model.

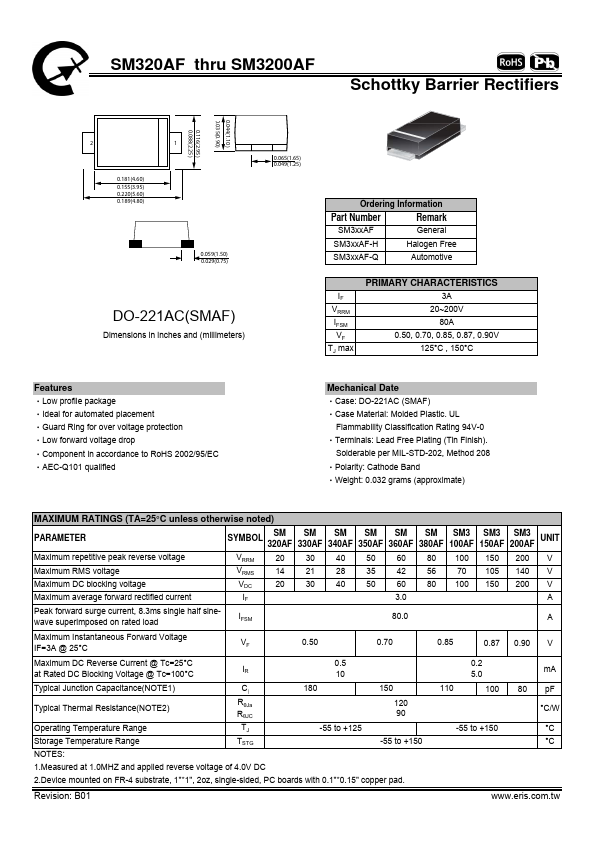

‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case: DO-221AC (SMAF) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.032 grams (approximate).
