SM3150A, SM320A - Schottky Barrier Rectifiers

Eris

Datasheet Details

Part number: SM3150A, SM320A
Manufacturer: Eris
File Size: 348.30 KB
Datasheet: SM320A-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SM3150A, SM320A.
Please refer to the document for exact specifications by model.

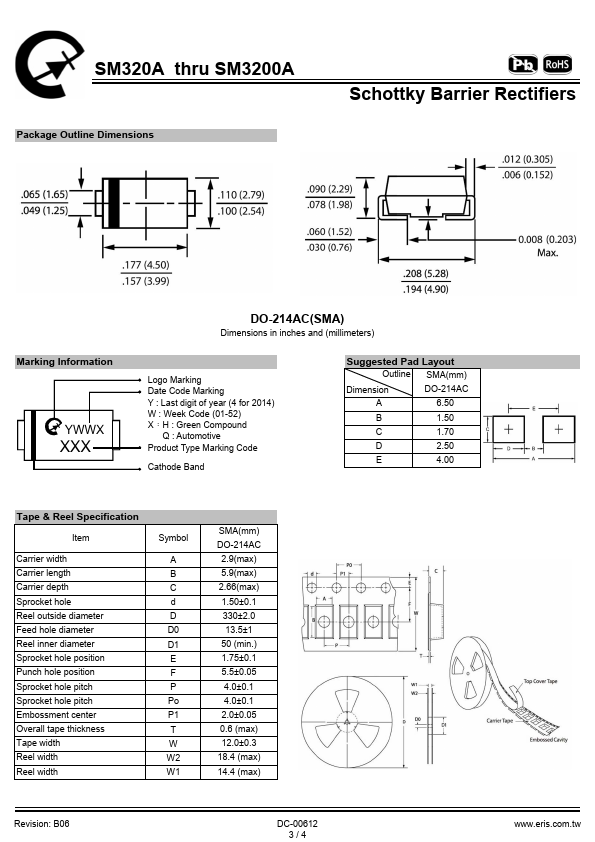

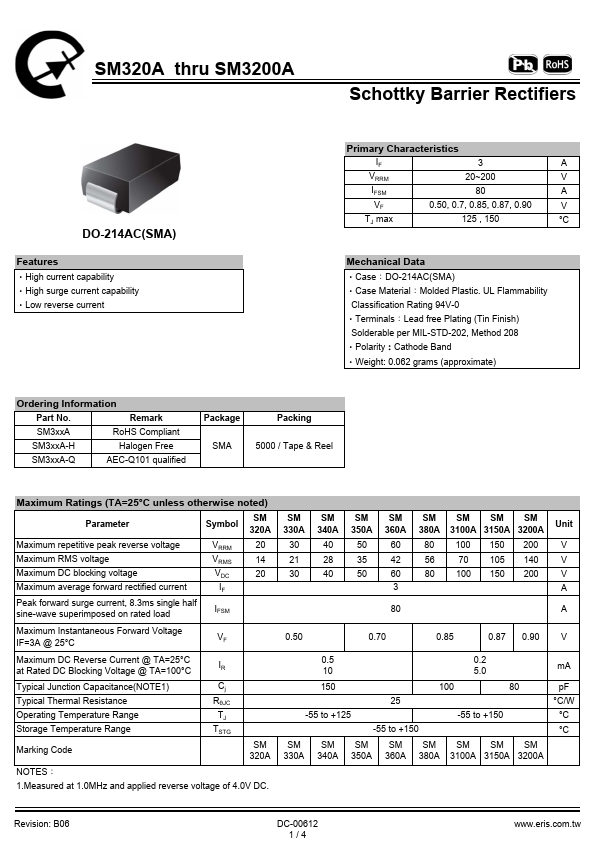

‧High current capability ‧High surge current capability ‧Low reverse current Primary Characteristics IF 3 A VRRM 20~200 V IFSM 80 A VF 0.50, 0.7, 0.85, 0.87, 0.90 V TJ max 125 , 150 °C Mechanical Data ‧Case：DO-214AC(SMA) ‧Case Material：Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals：Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity：Cathode Band ‧Weight: 0.062 grams (approximate) Ordering Information Part No. Remark SM3xxA.
