SM350AF, SM320AF Schottky Barrier Rectifiers

SM350AF Description

SM320AF thru SM3200AF Schottky Barrier Rectifiers 0.044(1.10) 0.035(0.90) 0.116(2.95) 0.088(2.25) 2 1 0.181(4.60) 0.155(3.95) 0.220(5.60) 0.189(4.

SM350AF Features

* ‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case: DO-221AC (SMAF) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧T

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM350AF, SM320AF. Please refer to the document for exact specifications by model.

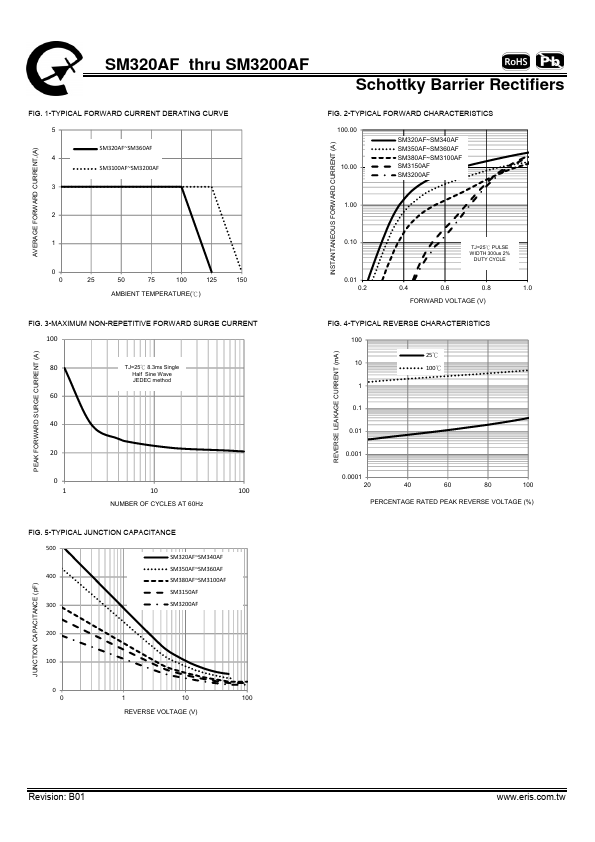

datasheet Preview Page 2

Datasheet Details

Part number
SM350AF, SM320AF
Manufacturer
Eris
File Size
193.85 KB
Datasheet
SM320AF-Eris.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SM350AF, SM320AF.
Please refer to the document for exact specifications by model.
