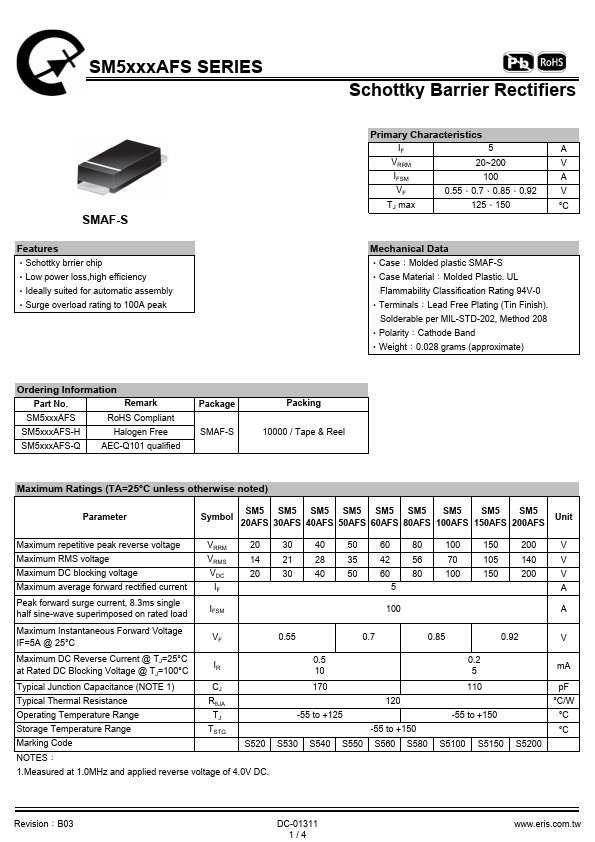

‧Schottky brrier chip ‧Low power loss,high efficiency ‧Ideally suited for automatic assembly ‧Surge overload rating to 100A peak
Primary Characteristics
IF
5
A
VRRM
20~200
V
IFSM
100
A
VF
0.55、0.7、0.85、0.92
V
TJ max
125、150
°C
Mechanical Data

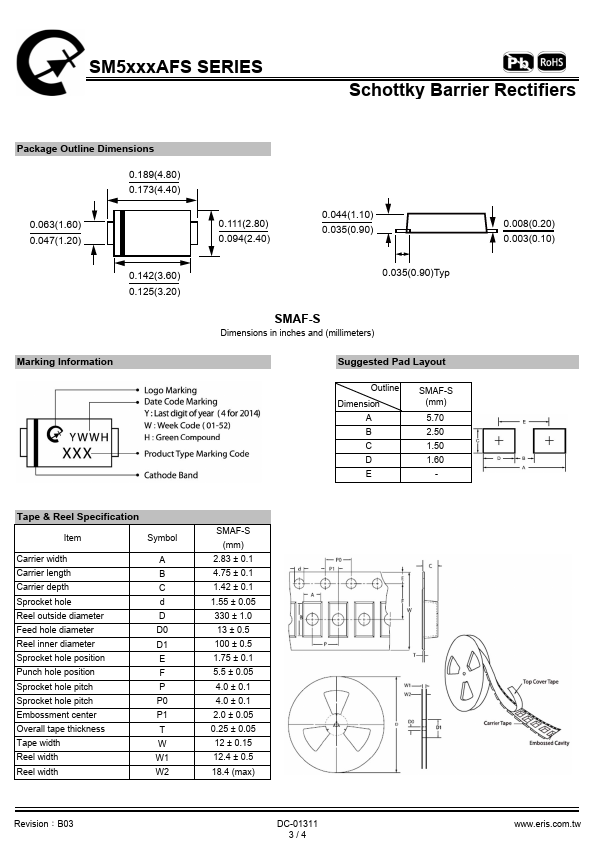

‧Case：Molded plastic SMAF-S ‧Case Material：Molded Plastic. UL
Flammability Classification Rating 94V-0 ‧Terminals：Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity：Cathode Band ‧Weight：0.028 grams (approximate.
