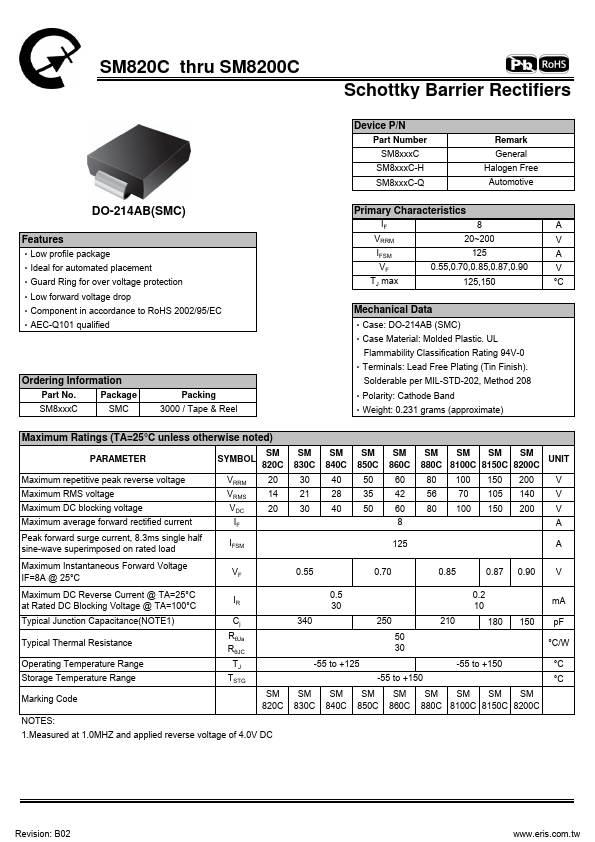

SM8200C, SM820C - Schottky Barrier Rectifiers

Eris

Datasheet Details

Part number: SM8200C, SM820C
Manufacturer: Eris
File Size: 324.54 KB
Datasheet: SM820C-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SM8200C, SM820C.
Please refer to the document for exact specifications by model.

‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Ordering Information Part No. SM8xxxC Package SMC Packing 3000 / Tape & Reel Primary Characteristics IF 8 A VRRM 20~200 V IFSM 125 A VF 0.55,0.70,0.85,0.87,0.90 V TJ max 125,150 °C Mechanical Data ‧Case: DO-214AB (SMC) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧T.
