SMB2EZ33D5, SMB2EZ2.7D5, Surface Mount Device

SMB2EZxxD5 SERIES Surface Mount Device 0.086 (2.20) 0.077 (1.95) 0.155 (3.94) 0.130 (3.30) 0.180 (4.57) 0.160 (4.06) 0.012 (0.305) 0.006 (0.152) 0.0.

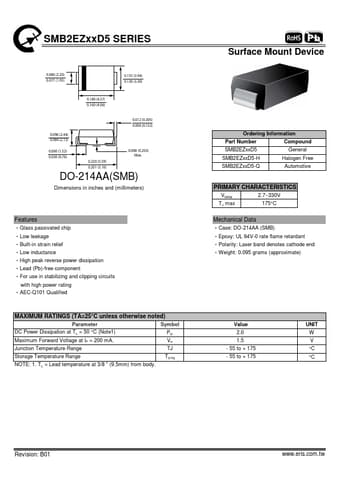

datasheet Preview Page 1 from Datasheet4u.com

SMB2EZ2.7D5-Eris.pdf

SMB2EZ33D5 Datasheet Preview — This datasheet PDF includes multiple part numbers: SMB2EZ33D5, SMB2EZ2.7D5. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMB2EZ33D5, SMB2EZ2.7D5

Manufacturer:

Eris

File Size:

167.99 KB

Description:

Surface Mount Device

Note:

This datasheet PDF includes multiple part numbers: SMB2EZ33D5, SMB2EZ2.7D5.
Please refer to the document for exact specifications by model.

Features

* ‧Glass passivated chip ‧Low leakage ‧Built-in strain relief ‧Low inductance ‧High peak reverse power dissipation ‧Lead (Pb)-free component ‧For use in stabilizing and clipping circuits with high power rating ‧AEC-Q101 Qualified Mechanical Data ‧Case: DO-214AA (SMB) ‧Epoxy: UL 94V-0 rate flame retar
