ESP32-PICO-MINI-02 Datasheet - Espressif

ESP32-PICO-MINI-02 Wi-Fi+Bluetooth

ESP32-PICO-MINI-02 and ESP32-PICO-MINI-02U are two general-purpose Wi-Fi + Bluetooth + Bluetooth LE MCU modules. They are based on ESP32-PICO-V3-02, a System-in-Package (SiP) device, which integrates an 8 MB SPI flash, 2 MB SPI Pseudo static RAM (PSRAM) and 40 MHz crystal oscillator. The rich set of.

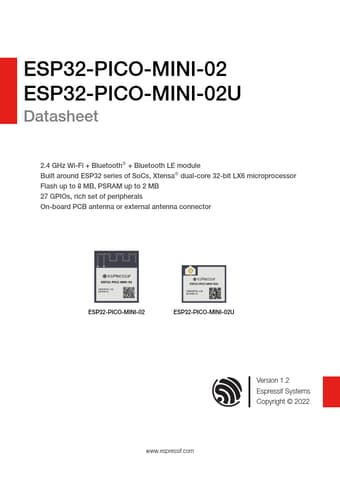

ESP32­PICO­MINI­02 ESP32­PICO­MINI­02U Datasheet 2.4 GHz Wi­Fi + Bluetooth® + Bluetooth LE module Built around ESP32 series of SoCs, Xtensa® dual­core 32­bit LX6 microprocessor Flash up to 8 MB, PSRAM up to 2 MB 27 GPIOs, rich set of peripherals On­board PCB antenna or external antenna connector ESP32­PICO­MINI­02 ESP32­PICO­MINI­02U www.espressif.com Version 1.2 Espressif Systems Copyright © 2022 1 Module Overview 1 Module Overview Note: Check the link or the QR code to make sure that you .

ESP32-PICO-MINI-02 Features

* CPU and On­Chip Memory Peripherals

* ESP32-PICO-V3-02 embedded, Xtensa dual-core 32-bit LX6 microprocessor, up to 240 MHz

* 448 KB ROM for booting and core functions

* 520 KB SRAM for data and instructions

* 16 KB SRAM in RTC

* 8 MB SPI flash

* 2 MB

ESP32-PICO-MINI-02 Datasheet (926.20 KB)

Preview of ESP32-PICO-MINI-02 PDF

Datasheet Details

Part number:

ESP32-PICO-MINI-02

Manufacturer:

Espressif

File Size:

926.20 KB

Description:

Wi-fi+bluetooth.
