FRM5W231KT

InGaAs-APD/Preamp Receiver

FRM5W231KT Features

* Data rate up to 2.5Gb/s

* -32dBm typ. sensitivity

* 30µm active area APD chip with GaAs preamplifier

* Small co-axial package with single mode fiber FRM5W231KT/LT KT APPLICATIONS

* High bit rate long haul optical transmission systems operating at 2.5Gb/s L

FRM5W231KT General Description

These APD preamplifiers use an InGaAs APD chip with GaAs IC preamplifier. The KT package is designed for a horizontal PC board mount. The LT package is secured by a vertical flange. Each package is connected with single mode fiber by Nd: YAG welding. The detector preamplifier is DC coupled and has a.

FRM5W231KT Datasheet (354.17 KB)

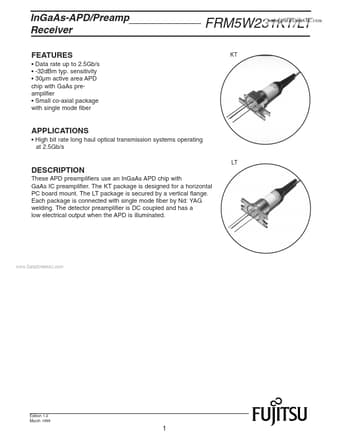

Preview of FRM5W231KT PDF

Datasheet Details

Part number:

FRM5W231KT

Manufacturer:

Eudyna Devices

File Size:

354.17 KB

Description:

Ingaas-apd/preamp receiver.
