FRM5W232BS Datasheet, Photodiode, Fujitsu Media Devices

FRM5W232BS Features

  • Photodiode
  • 2.5Gb/s APD Receiver module in an industry standard mini-DIL package
  • High Sensitivity: -34 dBm (typ.)
  • High Differential Electrical Output
  • Power O

PDF File Details

Part number:

FRM5W232BS

Manufacturer:

Fujitsu Media Devices

File Size:

146.70kb

Download:

📄 Datasheet

Description:

Incorporates a 30 micron ingaas avalanche photodiode. The FRM5W232BS incorporates a 30 micron InGaAs Avalanche Photodiode (APD) detector, a GaAs IC transimpedance preamplifier, and a ther

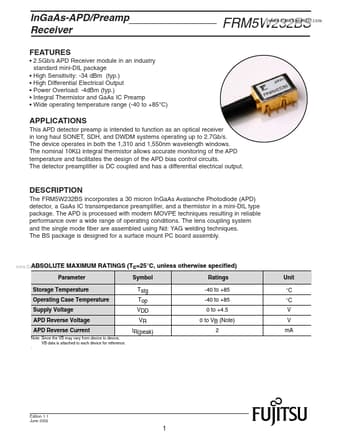

Datasheet Preview: FRM5W232BS 📥 Download PDF (146.70kb)
Page 2 of FRM5W232BS Page 3 of FRM5W232BS

FRM5W232BS Application

  • Applications This APD detector preamp is intended to function as an optical receiver in long haul SONET, SDH, and DWDM systems operating up to 2.7Gb
