FRM5W232FY

InGaAs-APD/Preamp Receiver

FRM5W232FY Features

* 5pins co-axial ROSA(Receiver Optical Subassembly) with LC Receptacle

* APD with +3.3V pre-amplifier

* Wide band: 2.2GHz

* Data rate up to 2.7Gb/s

* Differential output

* High sensitivity: -34dBm typ

* Operating case temperature: -40°C to 85°C

FRM5W232FY General Description

This APD preamplifier uses an InGaAs APD chip with GaAs transimpedance preamplifier. The FY package is a 5-pin coaxial ROSA (Receiver Optical Subassembly) with LC receptacle. This device is in compliance with ITU-T recommendations and meets the Telcordia requirements. ABSOLUTE MAXIMUM RATINGS(Tc=25°.

FRM5W232FY Datasheet (192.11 KB)

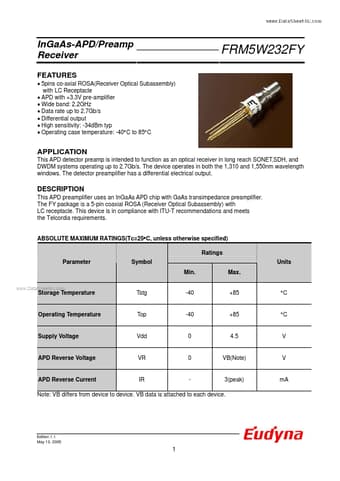

Preview of FRM5W232FY PDF

Datasheet Details

Part number:

FRM5W232FY

Manufacturer:

Eudyna Devices

File Size:

192.11 KB

Description:

Ingaas-apd/preamp receiver.
