EUP3290 Datasheet - Eutech Microelectronics

EUP3290 2.25MHz Synchronous Step-Down DC/DC Regulator

The EUP3290 is synchronous step-down DC-DC converters optimized for battery powered portable applications. The 2.7V to 5.5V input voltage range makes EUP3290 ideal for powering portable equipment that runs from 1-cell Li-Ion or 3-cell NiMH/NiCD batteries. The device is also suitable to operate from .

EUP3290 Features

* High Efficiency Up to 95% 2.25MHz Constant Switching Frequency 1A Available Load Current 30µA Typical Quiescent Current 2.7V to 5.5V Input Voltage Range Adjustable Output Voltage as Low as 0.6V No Schottky Diode Required Short Circuit and Thermal Protection Internal Soft Start Function Available in

EUP3290-EutechMicroelectronics.pdf

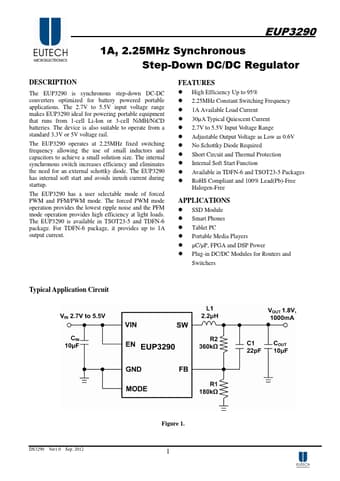

Preview of EUP3290 PDF

Datasheet Details

Part number:

EUP3290

Manufacturer:

Eutech Microelectronics

File Size:

83.94 KB

Description:

2.25mhz synchronous step-down dc/dc regulator.
