EUP7915

150mA Low-Noise LDO

EUP7915 Features

* include current limit, thermal shutdown and faster transient response. FEATURES z z z z z z z z z z z z 5-pin SOT23-5 Package 2.5V to 5.5V Input Voltage Range 50µV(rms) Output Noise 140mV Dropout @ 150mA 75dB PSRR at 1kHz Low 70µA Ground Current 150mA Output Current Stability with 1µF Ceramic Outpu

EUP7915 General Description

The EUP7915 is an efficient, CMOS voltage regulator optimized for ultra-low-noise applications. It offers high output accuracy, extremely low dropout voltage low ground current and fast start-up time. The EUP7915 provides a very low noise output, ideal for RF applications where a clean voltage sourc.

EUP7915 Datasheet (315.55 KB)

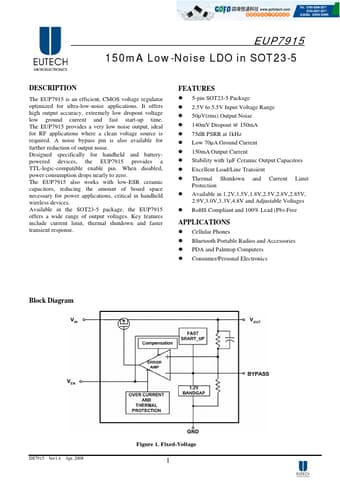

Preview of EUP7915 PDF

Datasheet Details

Part number:

EUP7915

Manufacturer:

Eutech Microelectronics

File Size:

315.55 KB

Description:

150ma low-noise ldo.
