EUP8054X, EUP8054, Standalone Linear Li-Ion Battery Charger

EUP8054/8054X Standalone Linear Li-Ion Battery Charger With Thermal Regulation in ThinSOT .
The EUP8054 is a complete constant-current/constantvoltage linear charger for single cell lithium-ion batteries.

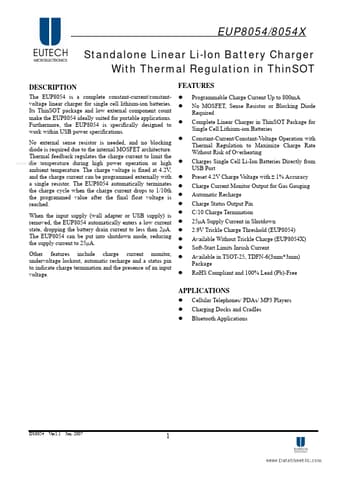

datasheet Preview Page 1 from Datasheet4u.com

EUP8054_EutechMicroelectronics.pdf

EUP8054X Datasheet Preview — This datasheet PDF includes multiple part numbers: EUP8054X, EUP8054. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EUP8054X, EUP8054

Manufacturer:

Eutech Microelectronics

File Size:

473.22 KB

Description:

Standalone Linear Li-Ion Battery Charger

Note:

This datasheet PDF includes multiple part numbers: EUP8054X, EUP8054.
Please refer to the document for exact specifications by model.

Features

* include charge current monitor, undervoltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage. FEATURES z z z z Programmable Charge Current Up to 800mA No MOSFET, Sense Resistor or Blocking Diode Required Complete Linear Charger in Thi

Applications

* Furthermore, the EUP8054 is specifically designed to work within USB power specifications. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power op
