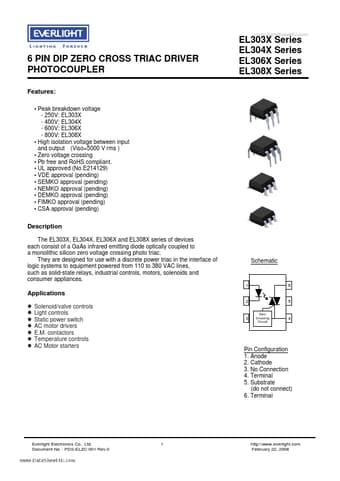

EL3032 Datasheet, PHOTOCOUPLER, Everlight Electronics

EL3032 Features

• Photocoupler
• Peak breakdown voltage - 250V: EL303X - 400V: EL304X - 600V: EL306X - 800V: EL308X
• High isolation voltage between input and output (Viso=5000 V rms )
• Zero

PDF File Details

Part number:

EL3032

Manufacturer:

Everlight Electronics

File Size:

436.42kb

Download:

📄 Datasheet

Description:

(el304x - el308x) 6 pin dip zero cross triac driver photocoupler. The EL303X, EL304X, EL306X and EL308X series of devices each consist of a GaAs infrared emitting diode optically coupled to a monolit

EL3032 Application

• Applications z z z z z z z 2 5 Zero Crossing Circuit Solenoid/valve controls Light controls Static power switch AC motor drivers E.M. contactors Te
