EL3H7A, EL3H7-G, 4 PIN SSOP PHOTOTRANSISTOR PHOTOCOUPLER

4 PIN ULTRA SMALL SSOP PHOTOTRANSISTOR PHOTOCOUPLER EL3H7-G Series .
The EL3H7-G series devices consist of an infrared emitting diode, optically coupled to a phototransistor detector encapsulated with green compound.

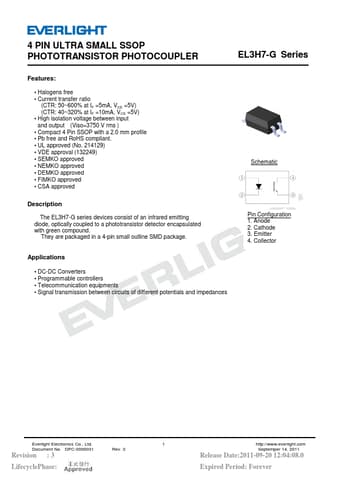

datasheet Preview Page 1 from Datasheet4u.com

EL3H7-G-EverlightElectronics.pdf

EL3H7A Datasheet Preview — This datasheet PDF includes multiple part numbers: EL3H7A, EL3H7-G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EL3H7A, EL3H7-G

Manufacturer:

Everlight Electronics

File Size:

448.68 KB

Description:

4 PIN SSOP PHOTOTRANSISTOR PHOTOCOUPLER

Note:

This datasheet PDF includes multiple part numbers: EL3H7A, EL3H7-G.
Please refer to the document for exact specifications by model.

Features

*
* Halogens free
* Current transfer ratio (CTR: 50~600% at IF =5mA, VCE =5V) (CTR: 40~320% at IF =10mA, VCE =5V)
* High isolation voltage between input and output (Viso=3750 V rms )
* Compact 4 Pin SSOP with a 2.0 mm profile
* Pb free and RoHS compliant.

Applications

* DC-DC Converters
* Programmable controllers
* Telecommunication equipments
* Signal transmission between circuits of different potentials and impedances Schematic Pin Configuration 1. Anode 2. Cathode 3. Emitter 4. Collector Everlight Electronics Co. , Ltd. Documen
