EL3H7E 4 PIN SSOP PHOTOTRANSISTOR PHOTOCOUPLER

The EL3H7-G series devices consist of an infrared emitting diode, optically coupled to a phototransistor detector encapsulated with green compound. They are packaged in a 4-pin small outline SMD package. Applications * DC-DC Converters * Programmable controllers * Telecommuni.

EL3H7E Features

* Halogens free

* Current transfer ratio (CTR: 50~600% at IF =5mA, VCE =5V) (CTR: 40~320% at IF =10mA, VCE =5V)

* High isolation voltage between input and output (Viso=3750 V rms )

* Compact 4 Pin SSOP with a 2.0 mm profile

* Pb free and RoHS compliant.

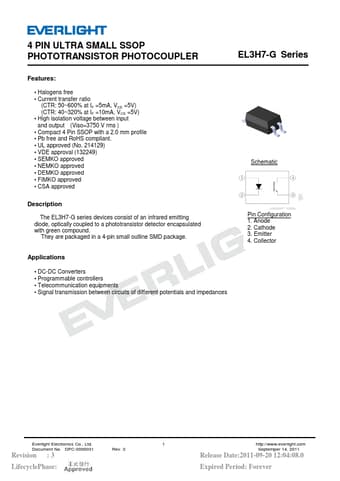

EL3H7-G-EverlightElectronics.pdf

EL3H7E Datasheet Preview — This datasheet PDF includes multiple part numbers: EL3H7E, EL3H7-G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EL3H7E, EL3H7-G

Manufacturer:

Everlight Electronics

File Size:

448.68 KB

Description:

4 pin ssop phototransistor photocoupler.

Note:

This datasheet PDF includes multiple part numbers: EL3H7E, EL3H7-G.
Please refer to the document for exact specifications by model.
