IRM-2656

Infrared Remote-control Receiver

IRM-2656 Features

* ‧High protection ability against EMI . ‧Circular lens to improve the receive characteristic. ‧Line-up for various center carrier frequencies. ‧Low voltage and low power consumption. ‧High immunity against ambient light. ‧Photodiode with integrated circuit. ‧TTL and CMOS compatibility. ‧Long receptio

IRM-2656 General Description

The IRM-26xx SERIES are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. IRM-26xx SERIES is the standard IR remot.

IRM-2656 Datasheet (273.08 KB)

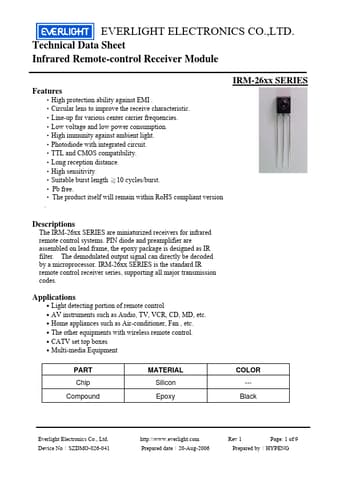

Preview of IRM-2656 PDF

Datasheet Details

Part number:

IRM-2656

Manufacturer:

Everlight Electronics

File Size:

273.08 KB

Description:

Infrared remote-control receiver.
