MP7610 Datasheet - Exar Corporation

MP7610 D/A Converter with Output Amplifier and Serial Data/Address mP Control Logic

The MP7610 provides eight independent 14-bit resolution Digital-to-Analog Converters with voltage output amplifiers and a 3-wire standard serial digital address and data port. The output amplifier is capable of sinking and sourcing 5mA, and the output voltage settles to 12-bits in less than 30ms (ty.

MP7610 Features

* w w Eight Independent 14-Bit DACs with Output Amplifiers Low Power 320 mW (typ.) Serial Digital Data and Address Port (3-Wire Standard) 14-Bit Resolution, 12-Bit Accuracy Extremely Well Matched DACs Extremely Low Analog Ground Current (

MP7610_ExarCorporation.pdf

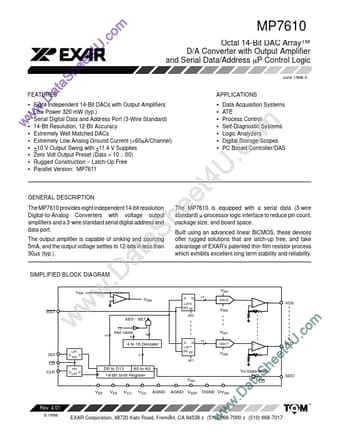

MP7610 Datasheet Preview — Preview of MP7610 PDF

Datasheet Details

Part number:

MP7610

Manufacturer:

Exar Corporation

File Size:

459.66 KB

Description:

D/a converter with output amplifier and serial data/address mp control logic.
