ST16C552A - DUAL UART WITH 16-BYTE FIFO AND PARALLEL PRINTER PORT

Product Overview

Exar Corporation

Datasheet Details

Part number	ST16C552A
Manufacturer	Exar Corporation
File Size	222.87 KB
Description	DUAL UART WITH 16-BYTE FIFO AND PARALLEL PRINTER PORT
Datasheet	ST16C552A Datasheet
Note	This datasheet PDF includes multiple part numbers: ST16C552A, ST16C552. Please refer to the document for exact specifications by model.

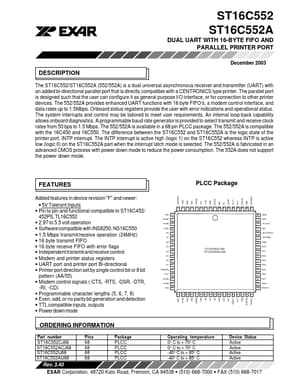

Additional preview pages of the ST16C552A datasheet.

Product details

Description

December 2003 The ST16C552/ST16C552A (552/552A) is a dual universal asynchronous receiver and transmitter (UART) with an added bi-directional parallel port that is directly compatible with a CENTRONICS type printer.The parallel port is designed such that the user can configure it as general purpose I/O interface, or for connection to other printer devices.The 552/552A provides enhanced UART functions with 16 byte FIFO’s, a modem control interface, and data rates up to 1.5Mbps.Onboard status

Features

PLCC Package 9 -RXRDYA 8 -CDB 7 GND 6 -RIB 5 -DSRB 4 CLK 3 -CSB 2 GND 1 BIDEN 68 ACK 67 PE 66 -BUSY 65 SLCT 64 VCC 63 ERROR 62 RXB 61 -RXRDYB Added features in device revision "F" and newer:.
5V Tolerant Inputs.
Pin to pin and functional compatible to ST16C452/ 452PS, TL16C552.
2.97 to 5.5 volt operation.
Software compatible with INS8250, NS16C550.
1.5 Mbps transmit/receive operation (24MHz).
16 byte transmit FIFO.
16 byte receive.
