XR-4194

Dual-Tracking Voltage Regulator

XR-4194 Features

* Direct Replacement for RM/RC 4194 80th Outputs Adjust with Single Resistor Load Current to ± 200 mA with 0.2 % Load Regulation Low External Parts Count Internal Thermal Shutdown at TJ = 175°C External Adjustment for ± Vo Unbalancing COMPNC +VIN NC GND RSET RO NC VO- APPLICATIONS On-Card Regulatio

XR-4194 General Description

The XR-4194 is a dual-polarity tracking regulator designed to provide balanced or unbalanced positive and negative output voltages at currents of up to 200 mA. A single resistor can be used to adjust both outputs between the limits of ± 50mV and ± 42 V. The device is ideal for local on-card regulati.

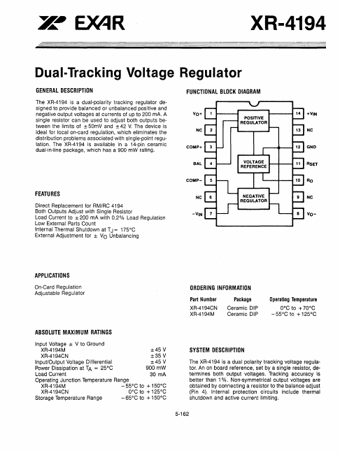

XR-4194 Datasheet (96.27 KB)

Preview of XR-4194 PDF

Datasheet Details

Part number:

XR-4194

Manufacturer:

Exar

File Size:

96.27 KB

Description:

Dual-tracking voltage regulator.
