XR-4202 Datasheet, Amplifier, Exar

XR-4202 Features

• Amplifier Programmable Micropower Operation Wide Input Voltage and Common Mode Range Internal Frequency Compensation No Latch-Up Matched Parameters Short-Circuit Protection -INPUT A OUTPUT A Vee

PDF File Details

Part number:

XR-4202

Manufacturer:

Exar

File Size:

121.41kb

Download:

📄 Datasheet

Description:

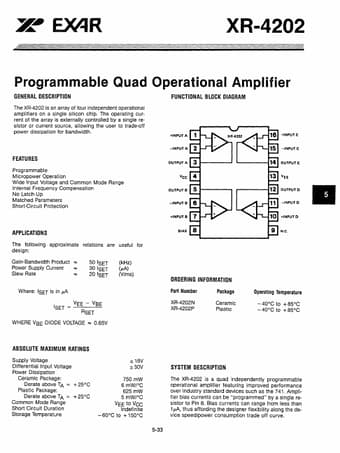

Programmable quad operational amplifier. FUNCTIONAL BLOCK DIAGRAM The XR-4202 is an array of four independent operational amplifiers on a single silicon chip. The operating

XR-4202 Application

• Applications The following approximate relations are useful for design: Gain-Bandwidth Product Power Supply Current Slew Rate 50 ISET 30 ISET 20
