EIC6472-8 - Internally Matched Power FET

Product Overview

Excelics Semiconductor

Part number	EIC6472-8
Manufacturer	Excelics Semiconductor
File Size	185.72 KB
Description	Internally Matched Power FET

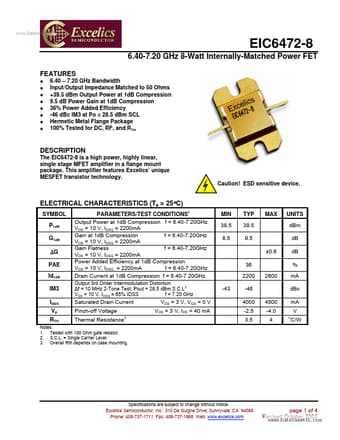

Datasheet	EIC6472-8 Datasheet
Additional preview pages of the EIC6472-8 datasheet.

The EIC6472-8 is a high power, highly linear, single stage MFET amplifier in a flange mount package.

6.40.
7.20 GHz Bandwidth Input/Output Impedance Matched to 50 Ohms +39.5 dBm Output Power at 1dB Compression 9.5 dB Power Gain at 1dB Compression 36% Power Added Efficiency -46 dBc IM3 at Po = 28.5 dBm SCL Hermetic Metal Flange Package 100% Tested for DC, RF, and RTH.
