EIC6775-15 Datasheet - Excelics Semiconductor

EIC6775-15, Internally Matched Power FET

www.DataSheet4U.com Preliminary EIC6775-15 ISSUED 10/08/2008 6.70-7.50 GHz 15-Watt Internally Matched Power FET 2X 0.079 MIN 4X 0.102 .

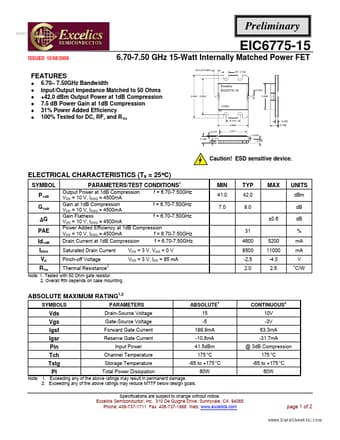

datasheet Preview Page 1 from Datasheet4u.com

EIC6775-15_ExcelicsSemiconductor.pdf

EIC6775-15 Datasheet Preview — Preview of EIC6775-15 PDF

Datasheet Details

Part number:

EIC6775-15

Manufacturer:

Excelics Semiconductor

File Size:

119.99 KB

Description:

Internally Matched Power FET

Features

* 6.70
* 7.50GHz Bandwidth Input/Output Impedance Matched to 50 Ohms +42.0 dBm Output Power at 1dB Compression 7.5 dB Power Gain at 1dB Compression 31% Power Added Efficiency 100% Tested for DC, RF, and RTH Excelics EIC6775-15 0.945 0
