EMB03N06HS Datasheet, Transistor, Excelliance MOS

PDF File Details

Part number:

EMB03N06HS

Manufacturer:

Excelliance MOS

File Size:

499.07kb

Download:

📄 Datasheet

Description:

Single n-channel logic level enhancement mode field effect transistor. N-CH BVDSS 60V RDSON (MAX.)@VGS=10V RDSON (MAX.)@VGS=4.5V 3.0mΩ 4.5mΩ ID @TC=25℃ 166A ID @TA=25℃ 22A Single N Channel MOSF

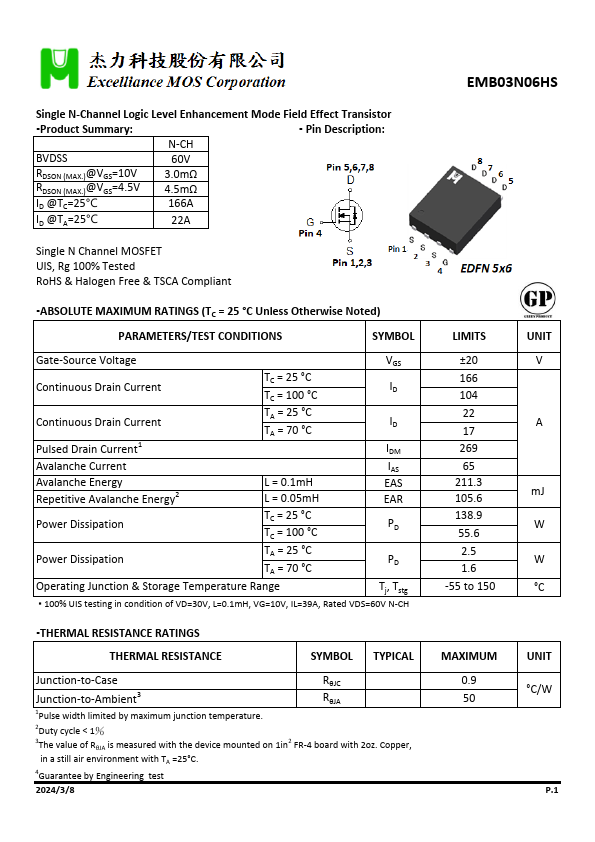

Datasheet Preview: EMB03N06HS 📥 Download PDF (499.07kb)

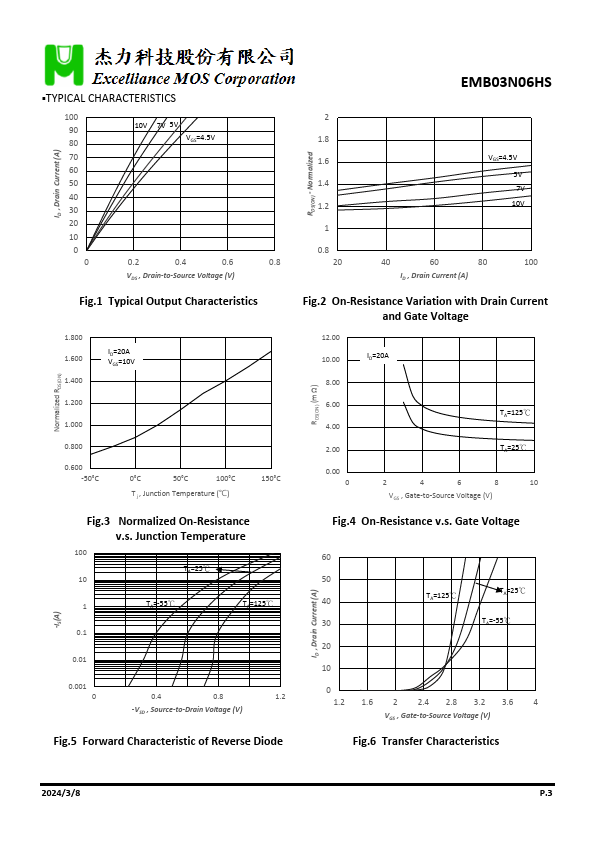

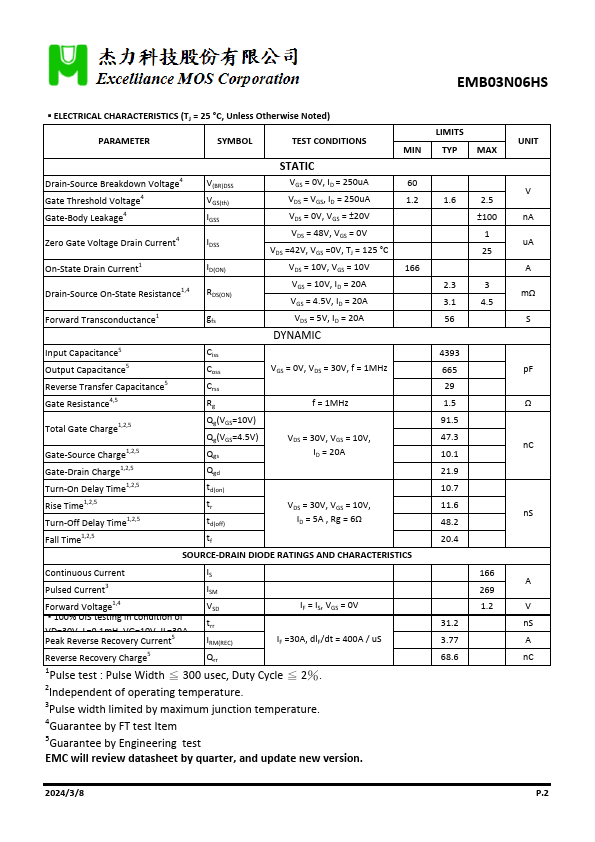

Page 2 of EMB03N06HS Page 3 of EMB03N06HS

TAGS

EMB03N06HS
Single
N-Channel
Logic
Level
Enhancement
Mode
Field
Effect
Transistor
Excelliance MOS
