FKBB3006 - N-Channel MOSFET

📥 Download Datasheet

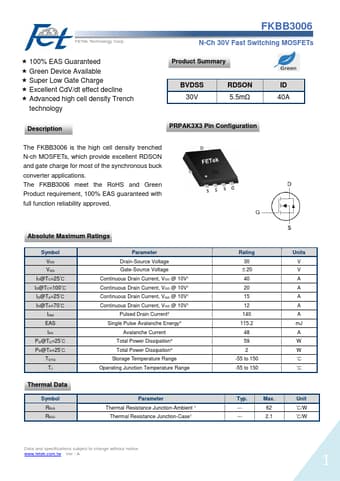

Preview of FKBB3006 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number FKBB3006
Manufacturer FETek
File Size 513.47 KB
Description N-Channel MOSFET
Datasheet download datasheet FKBB3006-FETek.pdf

FKBB3006 Product details

Description

Product Summary BVDSS RDSON ID 30V 5.5mΩ 40A PRPAK3X3 Pin Configuration The FKBB3006 is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.The FKBB3006 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.Absolute Maximum Ratings Symbol VDS VGS ID@TC=25℃ ID@TC=100℃ ID@TA=25℃ ID@TA=70℃ IDM EAS IAS PD@TC=25℃ PD@TA=25℃ TSTG TJ Parameter Dr
