C2274 NPN Transistor

C2274 Description

* *APPLICATION：General Purpose Applications.* *MAXIMUM RATING（Ta＝25℃） PARAMETER SYMBOL RATING UNIT Collector-base voltage VCBO 60.

C2274 Applications

* MAXIMUM RATING（Ta＝25℃） PARAMETER SYMBOL RATING UNIT Collector-base voltage VCBO 60 V Collector-emitter voltage VCEO 40 V Emitter-base voltage VEBO 5 V Collector current IC 500 mA Collector Power Dissipation PC 600 mW Junction Temperature TJ 150 ℃ Storage Temperature

📥 Download Datasheet

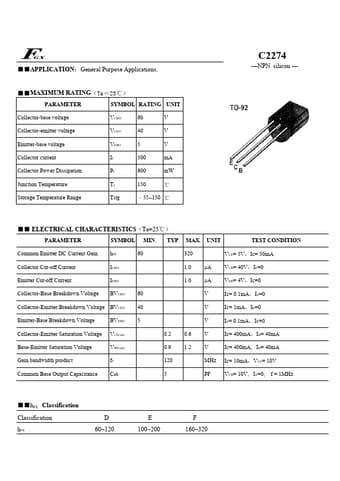

Preview of C2274 PDF

Datasheet Details

Part number
C2274
Manufacturer
FGX
File Size
120.17 KB
Datasheet
C2274-FGX.pdf
Description
NPN Transistor
