C2206 - Silicon NPN Transistor

C2206 Description

Transistors 2SC2206 Silicon NPN epitaxial planar type For high-frequency amplification Unit: mm Complementary to 2SA1254 * .

C2206 Features

* (0.4) 6.9±0.1 (1.5) (1.5) 2.5±0.1 (1.0) (1.0) 4.5±0.1 3.5±0.1
* Optimum for RF amplification of FM/AM radios R 0.9
* High transition frequency fT R 0.7
* M type package allowing easy automatic and manual insertion as well as stand-alone fixing to the printed circu

📥 Download Datasheet

Preview of C2206 PDF

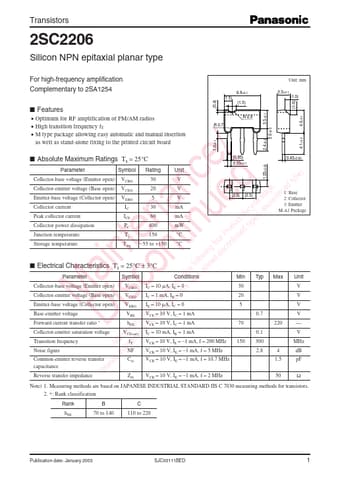

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C2206
Manufacturer
Panasonic
File Size
261.23 KB
Datasheet
C2206-Panasonic.pdf
Description
Silicon NPN Transistor
