FNK06N07E Datasheet, Mosfet, FNK

FNK06N07E Features

  • Mosfet
  • VDS=65V; ID=88A@ VGS=10V; RDS(ON)<7.45mΩ @ VGS=10V
  • Special Designed for E-Bike Controller Application
  • Ultra Low On-Resistance
  • High UIS and UIS 10

PDF File Details

Part number:

FNK06N07E

Manufacturer:

FNK

File Size:

3.43MB

Download:

📄 Datasheet

Description:

N-channel power mosfet. The FNK06N07E is N-channel MOS Field Effect Transistor designed for high current switching applications. Rugged EAS capability and ul

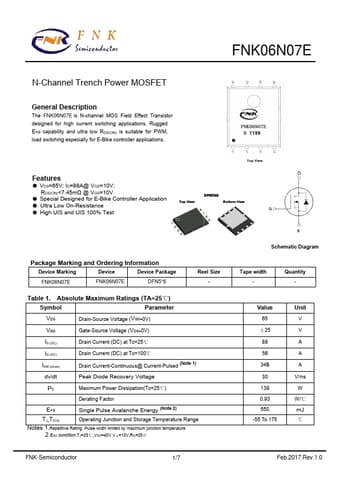

Datasheet Preview: FNK06N07E 📥 Download PDF (3.43MB)
Page 2 of FNK06N07E Page 3 of FNK06N07E

FNK06N07E Application

  • Applications Rugged EAS capability and ultra low RDS(ON) is suitable for PWM, load switching especially for E-Bike controller applications. Top Vi
