FNK4838 Datasheet - FNK

FNK4838 N-Channel Power MOSFET

FNK4838 Features

* VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 30V 11A < 8.5mΩ < 12mΩ

* High density cell design for ultra low Rdson

* Fully characterized Avalanche voltage and current D1 D2 G1 G2 S1 S2 Schematic diagram Top View S2 1 G2 2 S1 3 G1 4 8 7 6 5 D2 D2 D1 D1 Applica

FNK4838 Datasheet (1.19 MB)

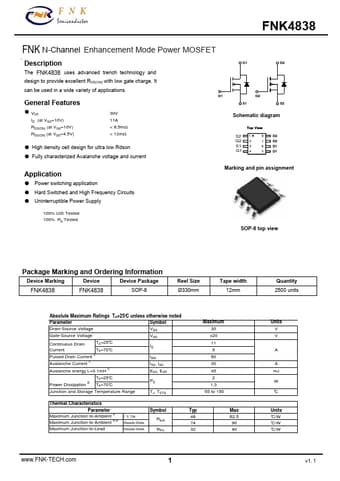

Preview of FNK4838 PDF
FNK4838 Datasheet Preview Page 2 FNK4838 Datasheet Preview Page 3

Datasheet Details

Part number:

FNK4838

Manufacturer:

FNK

File Size:

1.19 MB

Description:

N-channel power mosfet.
