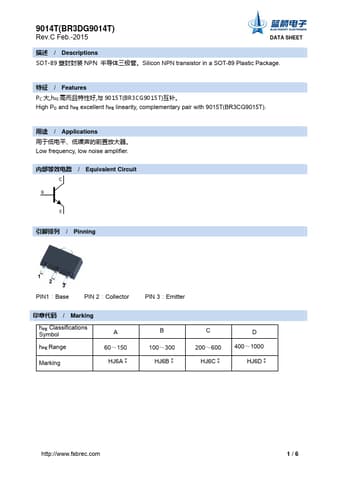

9014T
Features
PC 大,h FE 高而且特性好,与 9015T(BR3CG9015T)互补。 High PC and h FE excellent h FE linearity, plementary pair with 9015T(BR3CG9015T).
用途 / Applications 用于低电平、低噪声的前置放大器。 Low frequency, low noise amplifier.
内部等效电路 / Equivalent Circuit
引脚排列 / Pinning
1 2
PIN1：Base
PIN 2：Collector
印章代码 / Marking h FE Classifications Symbol h FE Range
Marking
A 60～150
HJ6A
PIN 3：Emitter
B 100～300
HJ6B
C 200～600
HJ6C
D 400～1000
HJ6D
- -
- -
- -
- - http://.fsbrec.
1/6
9014T(BR3DG9014T)
Rev.C Feb.-2015
DATA SHEET
极限参数 / Absolute Maximum Ratings(Ta=25℃)
参数 Parameter Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current
- Continuous Collector Power Dissipation Junction Temperature Storage Temperature Range
符号 Symbol
VCBO VCEO VEBO
IC PC Tj Tstg
电性能参数 / Electrical Characteristics(Ta=25℃)
数值 Rating
50 45 5.0 100 500 150 -55～150
单位 Unit
V V V m A m...
