Part number: FSP3112
Manufacturer: FOSLINK SEMICONDUCTOR
File Size: 457.74KB
Download: 📄 Datasheet
Description: 600MA SYNCHRONOUS STEP-DOWN CONVERTER
High Efficiency : Up to 96% 1.5MHz Constant Frequency Operation 600mA Output Current at VIN=3.0V Very Low Quiescent Current of 500µA No Schottky Diode Required Low RDS(ON.
*
z z z z z
APPLICATIONS
Portable Media Players Digital Still Cameras Cellular Telephones PDAs Wireless and DSL m.

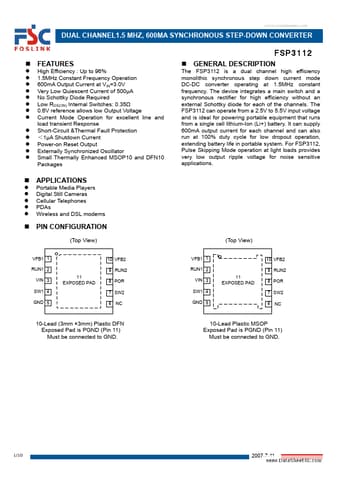

The FSP3112 is a dual channel high efficiency monolithic synchronous step down current mode DC-DC converter operating at 1.5MHz constant frequency. The device integrates a main switch and a synchronous rectifier for high efficiency without an extern.
