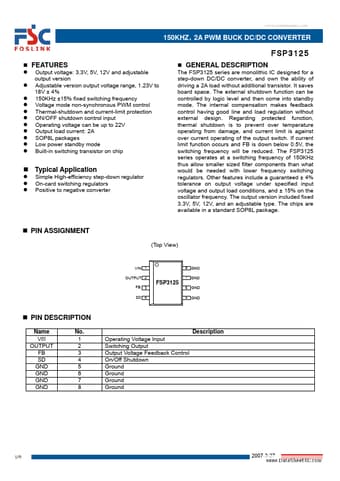

Part number: FSP3125
Manufacturer: FOSLINK SEMICONDUCTOR
File Size: 301.12KB
Download: 📄 Datasheet
Description: 150KHZ 2A PWM BUCK DC/DC CONVERTER
z Output voltage: 3.3V, 5V, 12V and adjustable output version z Adjustable version output voltage range, 1.23V to 18V ± 4% z 150KHz ±15% fixed switching frequency z Volta.
The FSP3125 series are monolithic IC designed for a step-down DC/DC converter, and own the ability of driving a 2A load without additional transistor. It saves board space. The external shutdown function can be controlled by logic level and then come.
Image gallery
